Aerofoil blade

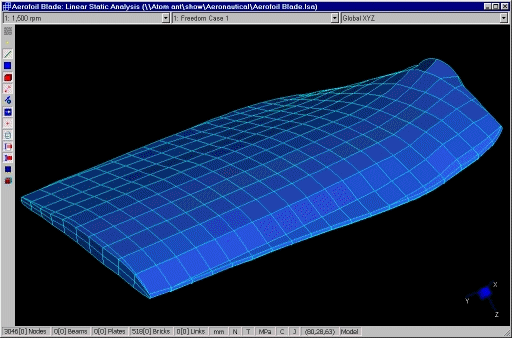

Cast aluminium aerofoil blade from an axial flow fan. The analysis consisted of a natural frequency analysis and a static analysis with centrifugal loads due to a 1500 rpm rotational speed.

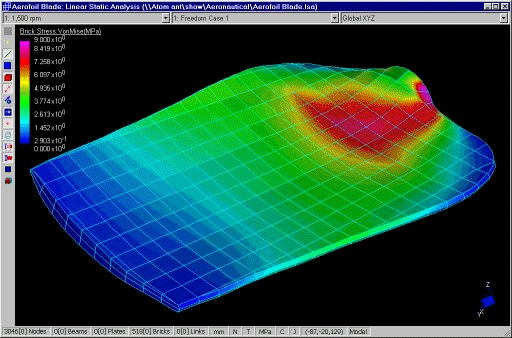

The stress results were used to identify an appropriate location for the placement of a strain gauge.
