Baron
 |

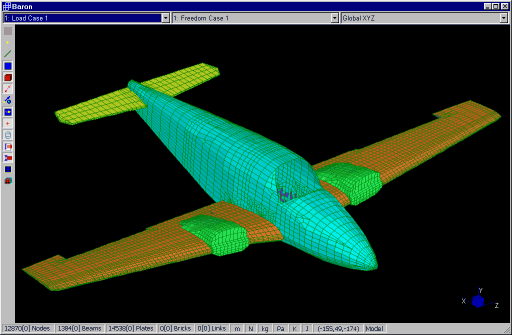

Monocoque structures such as an aircraft fulselage can be modelled easily by using the lofting tools in Strand7. |
 |

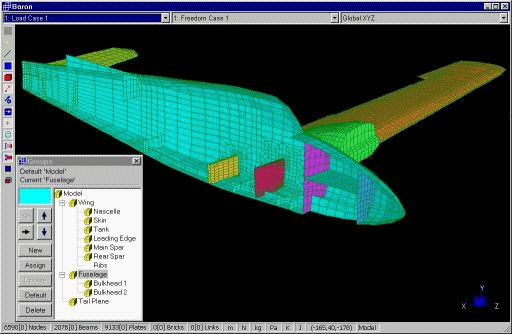

The grouping tools in Strand7 can greatly simplify the pre and post processing of complex models. Each major component has been grouped. |
 |

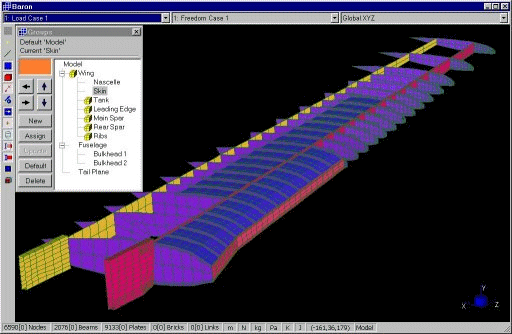

All groups except the wing have been switched off. To reveal the spars and ribs, switch off the skin on the wing. |
 |

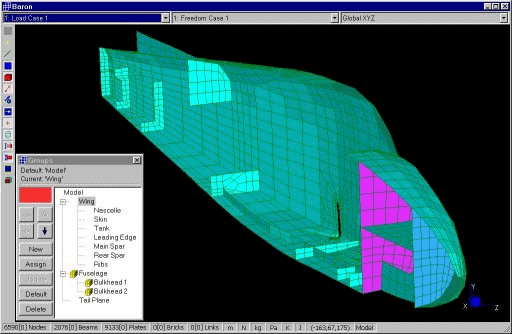

View inside the fuselage showing bulkheads. |
