Composite windmill blade

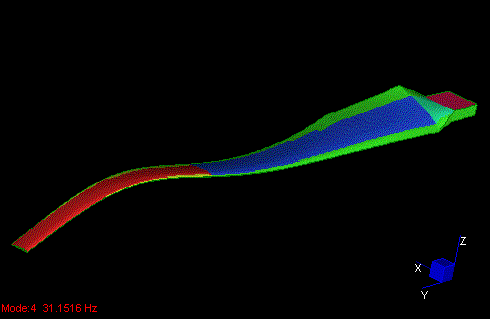

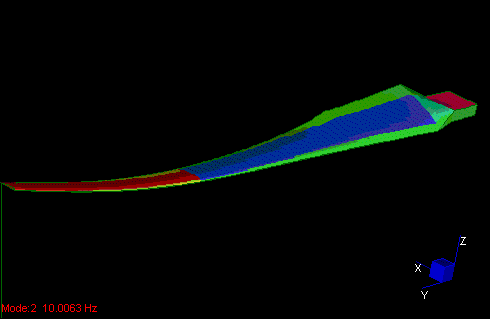

The blade is a composite windmill blade. Part of the modelling includes dynamic analysis. Two modes of vibration are shown: Mode 2, around 10Hz and Mode 4 around 30Hz.
