Concrete arch dam

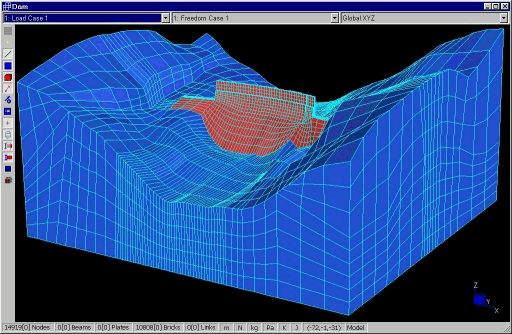

The analysis evaluated proposed extensions to the crest of the concrete arch dam, for a one in 1000 year flood. The height of the dam was increased by 10m, and post-tensioning applied to offset the additional overturning moment. The surrounding topography was modelled to accurately account for the interaction between the dam and the soil.

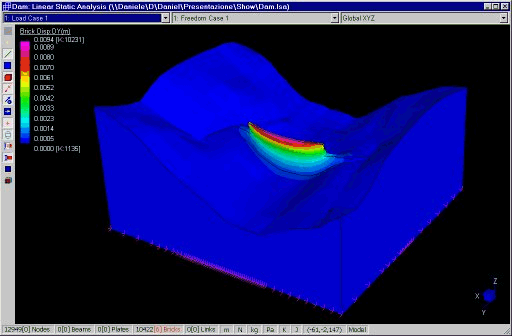

Displacement contour due to static water load case.

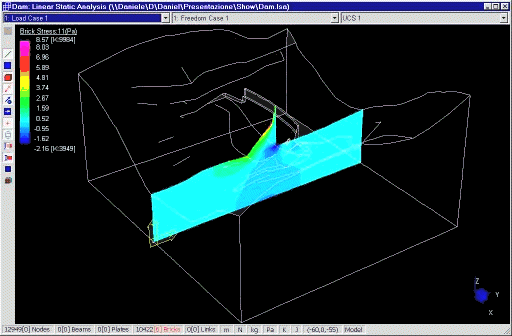

The slicing option in Strand7 provides a clear view of the stresses inside the structure.
