Concrete footing on soil foundation

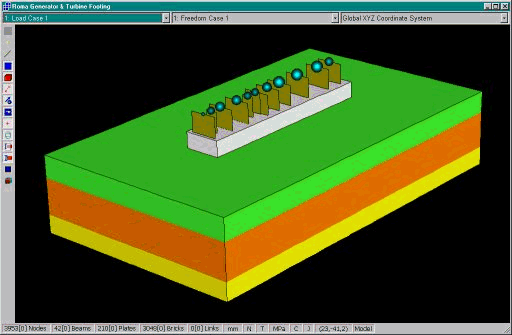

A dynamic analysis on a concrete footing for a gas turbine and generator, was conducted to investigate dynamic magnification at resonances.

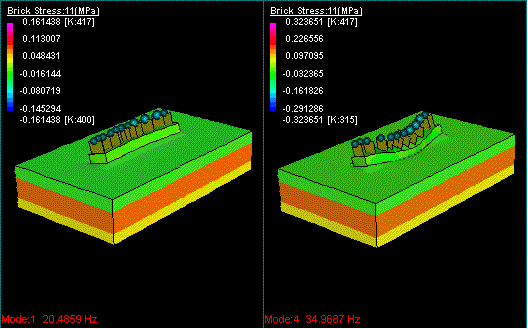

By visually inspecting the animation, we can choose the most appropriate modes to include in the harmonic response analysis.

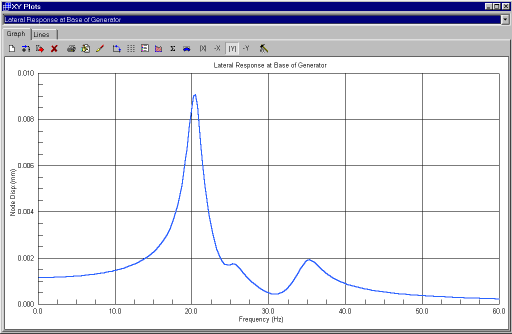

Harmonic response curve at location of bearing supports. This XY-plot is automatically generated by Strand7 using a simple point-and-click.
