Centrifugal fan

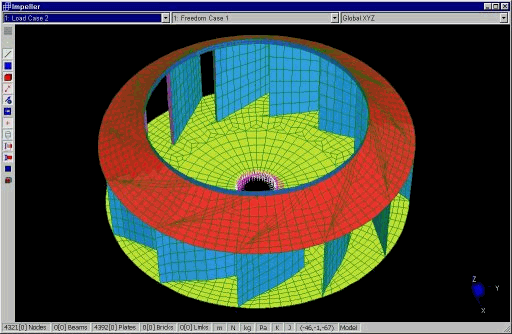

A vibration analysis of a centrifugal fan was performed to compare the calculated modes of vibration with values measured using a new in-situ technique. The analysis included the stress-stiffening effect of the impeller rotating at 1000 rpm.

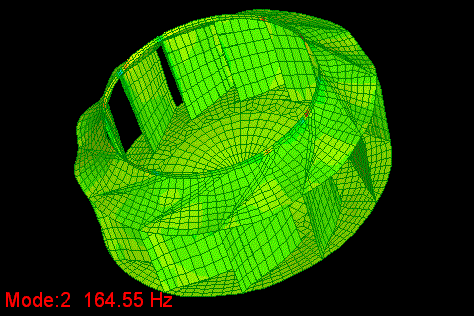

Back-plate bending mode.

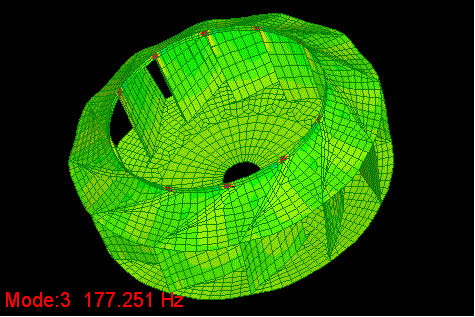

Torsional mode.
