Plastic hub

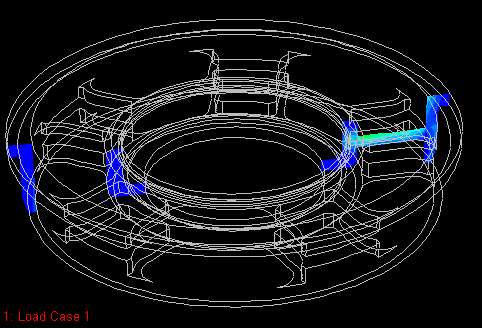

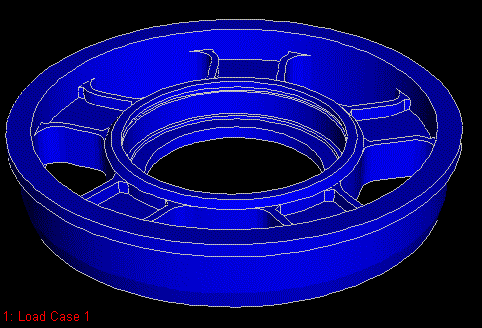

Post-processing results such as stress in brick models is quite easy in Strand7. The animations show the stresses on the ourter surface of the plastic hub, and internal stresses using the slicing option.
