Beam collision

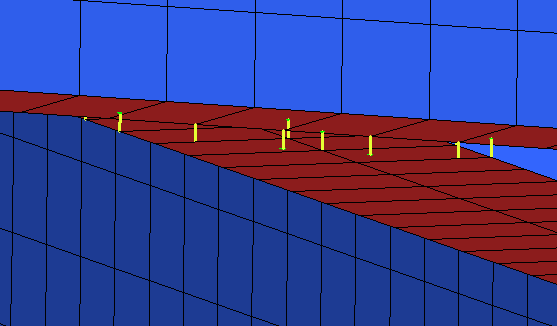

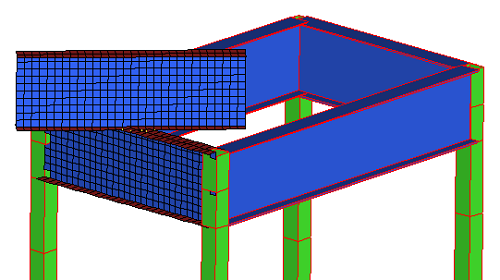

A falling beam collides with a support frame. The support frame residual strength is of interest. Contact is defined between the two beam flanges.

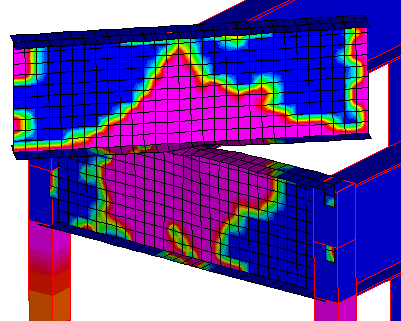

The yielded regions after impact in both beams are shown below.

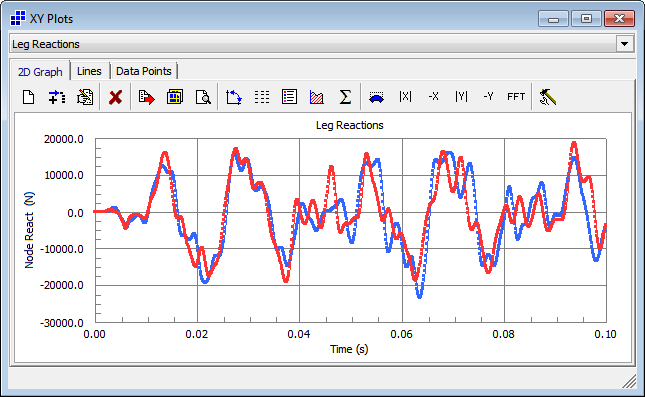

The reactions in the legs are shown below.
