Catch bin

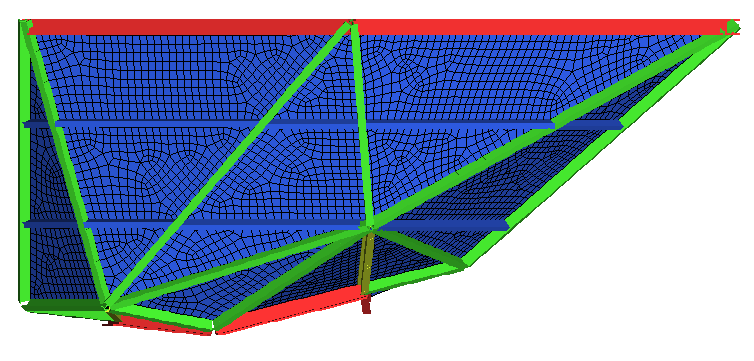

A ribbed catch bin is constructed using both beam and shell elements.

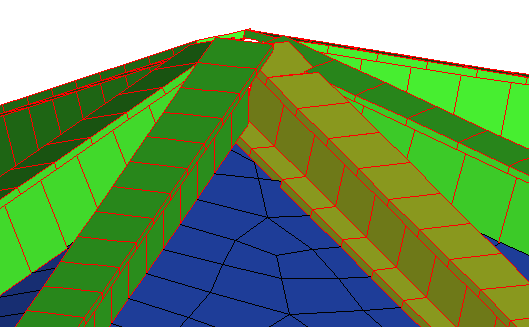

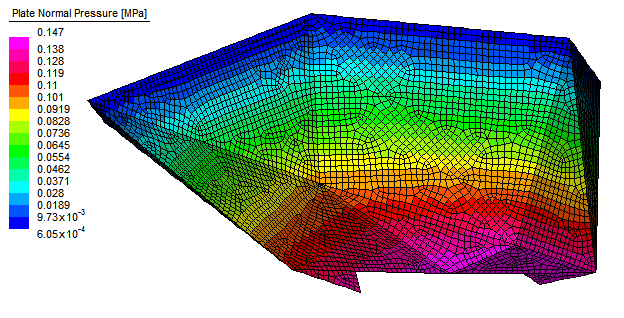

The beams form the ribs and are aligned to and offset from the plates. The bin is loaded with an effective hydrostatic load case to simulate the overflow condition.

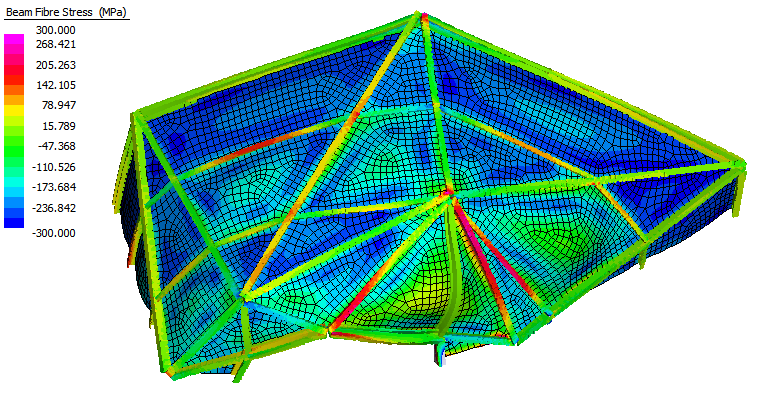

The loaded structure with stress contours limited to 300 MPa is shown above. Displacements are exaggerated.
