Composite beam

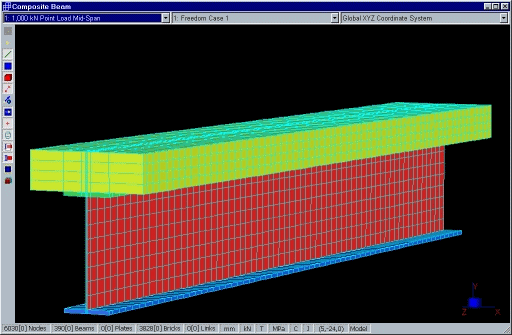

A composite beam has been modelled with brick elements. The load is a concentrated force at half-span.

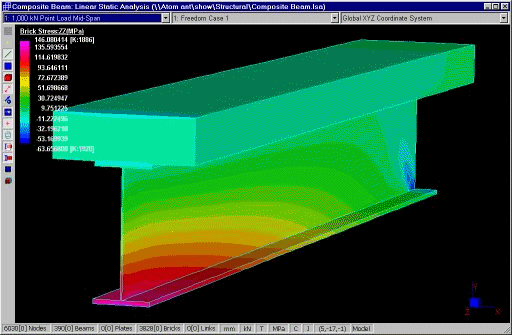

Contour plot of axial stress.

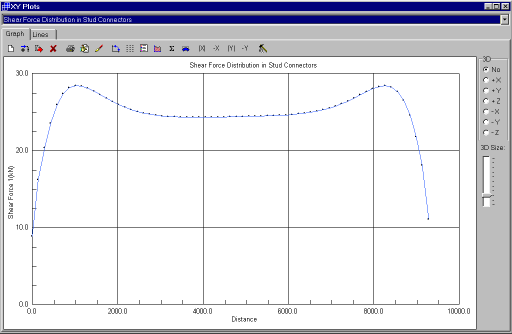

Graph of shear force along the connection of the two components.



Graph of shear force superimposed onto the mesh.
