Strand7 Software:  In Detail:  Results:  Beam Sections

Investigating results in Strand7

Beam sections

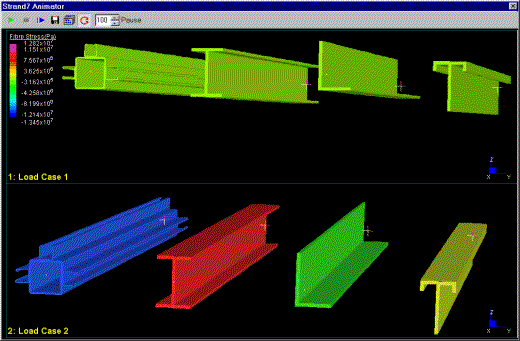

Strand7 can fully render all beam section including standard and user-defined sections. Deformation and result contours can be displayed directly on the sections. The figure below shows the animation of a series of beam elements. Each is a single element, clearly illustrating Strand7's ability to display deformed beam elements; both flexure and torsion are included in the display.
