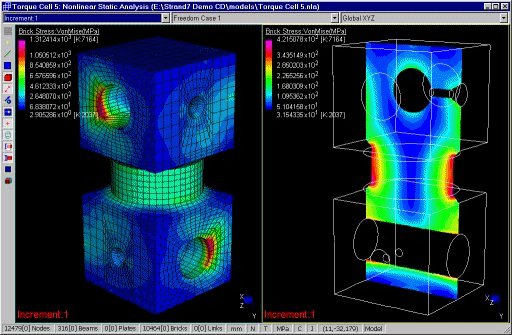

Cutting planes You can specify arbitrary cutting planes in brick models, and view stress contours on these planes. In a multi-view display, you can simultaneously see the stresses on both the outer surface and inside the brick elements.
