Investigating results in Strand7

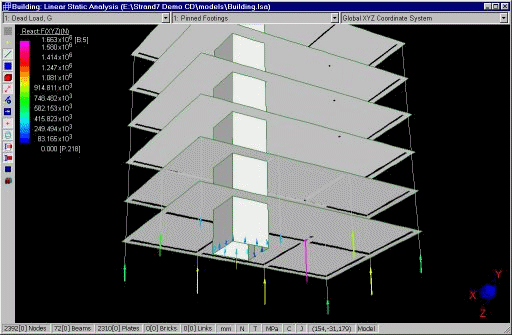

Reaction vectors Reaction results may be contoured or displayed as vectors. The reaction vector plot, available on all element types gives an indication of both the relative magnitude and direction of the nodal reactions.
