F111 Vane

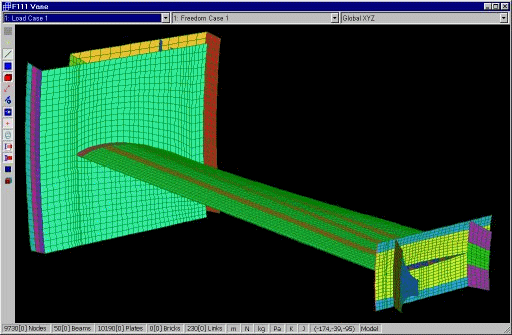

F111 straightening vane. Sector symmetry was used to model a single blade. The analysis was concerned with investigating the response of the blade to pressure pulses induced by the blade passing frequency. The Linear Transient Dynamic solver was used.
