Auger
|

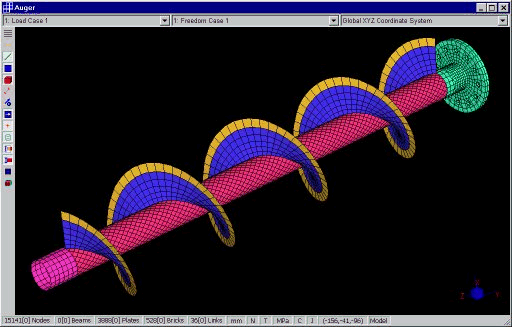

An auger constructed from shell elements to assess stresses in the welds for fatigue calculations. These structures are very easily modelled in Strand7 using the sweep and extrude tools. |
|

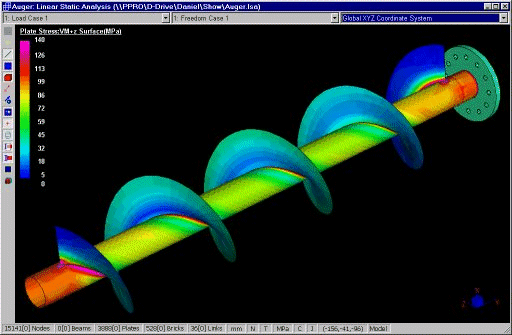

Stress results. |
