Inertia, mass properties and bill of materials
|
The Model Summary Viewer in Strand7 is used to summarize various aspects of the model
including Bill of Materials, Mass Distribution, Local and Global Mass Moments of Inertia. |
|
Group data is always displayed for the currently selected group.
The available groups in your model appear in a group tree at the left;
clicking on a group makes it the current selection. |
| The print preview option allows further formatting and printing of the data. |
|

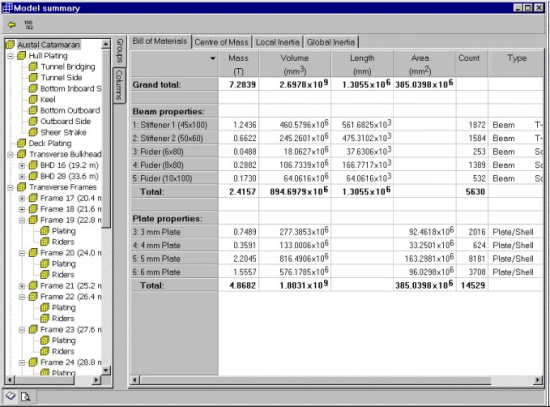

| The summary spreadsheet. |
|

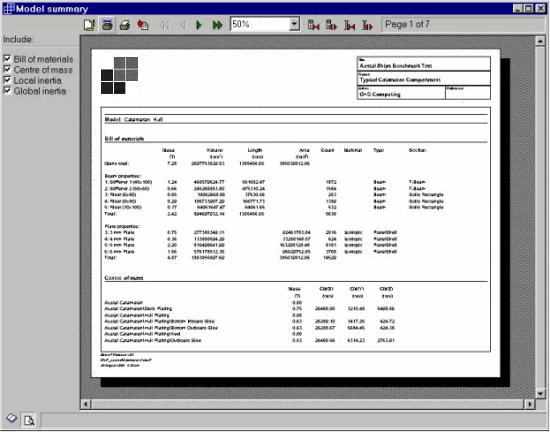

| The print preview. |
