Investigating results in Strand7

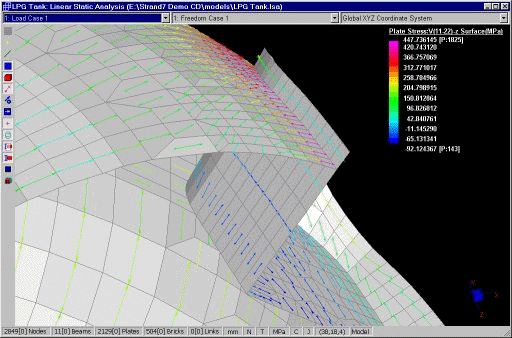

Stress vectors Stress quantities such as principal stresses may also be plotted as vectors. These not only show the magnitudes, but also the direction. Stress vectors are available on plates and on bricks.
