Attributes: Scale Load Case Attributes

Description

Used to scale attributes across one or more load cases.

Attributes may be scaled for all or only selected entities.

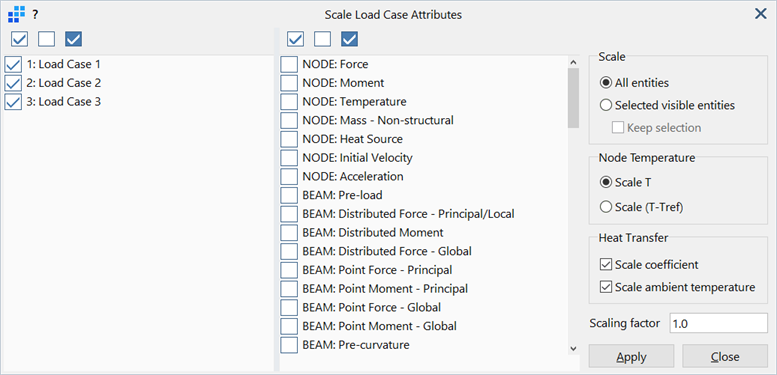

Dialog

Load Cases / Attribute List

Load cases and attributes considered for scaling.

Selected attributes are only scaled if their corresponding load cases are also selected.

Scale

The entities to be scaled.

• All Entities

  Attributes are scaled for all entities in the model.

• Selected Visible Entities

  Attributes are scaled only for selected entities that are visible in the model window.

Node Temperature

Method used to scale nodal temperatures.

• Scale T

  Scales the absolute value of temperature.

• Scale (T - T_ref)

  Scales the difference between the absolute and reference temperature values.

  The scaled temperature is equal to T_ref + S × (T - T_ref), where S is the scaling factor.

Heat Transfer

• Scale Coefficient

  If set, convection and radiation coefficient attributes are scaled.

• Scale Ambient Temperature

  If set, convection and radiation ambient temperature attributes are scaled.

Scaling Factor

Factor used to scale selected attributes.

May be positive, negative or zero.

See Also

• CASES: Load Cases
• LAYOUTS: Tables
• SOLVERS: Load (Nonlinear Static)
