Brick Attributes: Heat Flux
Description
Assigns a heat flux to selected faces of brick elements.
Applicable only to heat transfer analyses.
Models uniform heat flow normal to the brick face. A positive flux indicates heat flowing out of the element. A negative flux indicates heat is flowing in.
The heat flux can be scaled as a function of time and/or temperature.
Heat flux attributes are load case dependent.

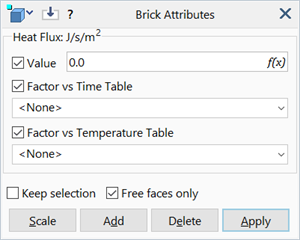

Dialog
Value
Heat flux at the brick face surface.
Factor vs Time table
The table that scales heat flux as a function of time.
Applicable only to the transient heat solver.
Factor vs Temperature table
The table that scales heat flux as a function of temperature.
Applicable only to nonlinear heat transfer analysis.
Common Controls
- Components
- Equation Editor
- Retrieve from model
- Keep selection
- Free edges / Free faces
- Scale / Add / Delete / Apply
Units
Energy/Time/Length2 (e.g., J/s/m2, Btu/s/in2).
