Edge Attributes: Divisions

Description

Sets the minimum number of elements to generate along selected geometry edges when automeshing.

Does not split the selected geometry edges; the attributes only affects the generated mesh.

Edge divisions attributes are independent of load and freedom cases.

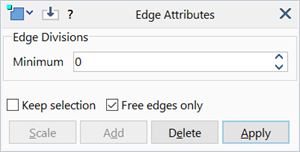

Dialog

Minimum

The minimum number of edge divisions as an integer.

If a real number is entered directly, the value is rounded to the nearest integer.

Values less than one are ignored.

Common Controls

• Retrieve from model
• Keep selection
• Free edges / Free faces
• Scale / Add / Delete / Apply
