Mesh Tools: Mid-plane Plate Projection
Description

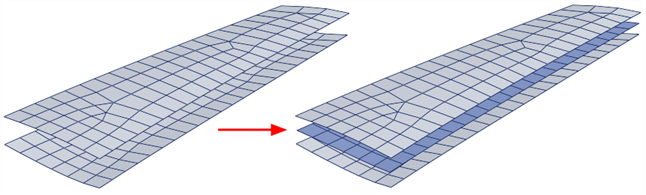

Generates the mid-plane between two surfaces defined by selected plate elements.
The two surfaces must be disconnected from each other. Each surface must be fully connected as a contiguous surface.
A master surface is specified, and this is projected half-way between the two surfaces. The mid-plane surface will be topologically equivalent to the master surface, but geometrically equivalent to the average of the two surfaces.
Dialog
Master element (source)
Plate element on the master surface.
Must be part of the selected set of plate elements.
Source
Specifies what to do with the master surface.
-
Copy
Master surface is copied to the mid-surface location.
-
Move
Master surface is moved to the mid-surface location.
