Move Tools: to UCS Plane

Description

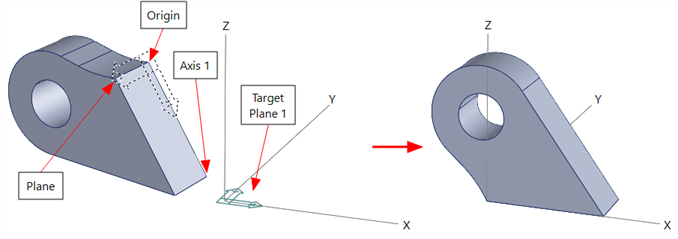

Moves and aligns selected entities to a plane.

The entities are aligned such that the orientation and position of the source and target planes match.

Dialog

Source

Source plane defined by three points.

• Origin

  Point that defines the origin of the source plane.

• Axis 1

  Point that defines the first axis of the source plane from the origin.

• Plane

  Point that defines the plane of the source plane.

Target

Target plane defined by three points.

• Coordinate System

  The coordinate system in which the target plane is defined.

• Plane 1

  A target plane defined by the first and second axes of selected coordinate system.

• Plane 2

  A target plane defined by the second and third axes of selected coordinate system.

• Plane 3

  A plane defined by the third and first axes of selected coordinate system.

Common Controls

• Components
• Point selection
• Keep Selection
