Beam Attributes: Heat Source

Description

Assigns an internal heat source or heat sink to selected beam elements.

Applicable only to heat transfer analysis.

A positive heat source models uniform heat generation over the entire volume of the element. A negative heat source is equivalent to a heat sink.

The heat source can be scaled as a function of time and/or temperature.

Heat source attributes are load case dependent.

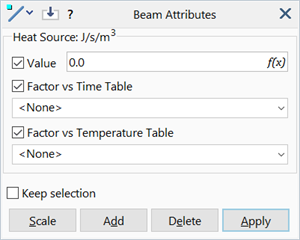

Dialog

Value

Heat source.

May be positive or negative.

Factor vs Time table

A table that scales the heat source as a function of time.

Applicable only to the transient heat solver.

Factor vs Temperature table

A table that scales the heat source as a function of temperature.

Applicable only to nonlinear heat transfer analysis.

Common Controls

• Components
• Equation Editor
• Retrieve from model
• Keep selection
• Scale / Add / Delete / Apply

Units

Energy/Time/Length³ (e.g., J/s/m³, Btu/s/in³).

See Also

• Beam Attributes: Heat Flux
• LAYOUTS: Tables
