Copy Tools: to Absolute

Description

Copies selected nodes, beams, links and plates to an absolute position.

All copied nodes have one of the three ordinates in the selected coordinate system changed to a specified value. The remaining two ordinates are not changed.

Only one copy is made to the specified target position.

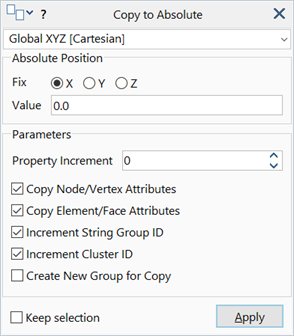

Dialog

Coordinate System

The coordinate system (UCS) in which the absolute position is defined.

Fix X / Y / Z

Ordinate to change to the specified value. The remaining ordinates remain unchanged.

Value

Value of the selected fixed ordinate.

Common Controls

• Components
• Property Increment
• Copy Node/Vertex Attributes
• Copy Element/Face Attributes
• Increment String Group ID
• Create New Group for Copy
• Keep Selection

See Also

• Move Tools: to Absolute
• Extrude Tools: to Absolute
