Extrude Tools: to Absolute

Description

Extrudes selected nodes, beams, plates and brick faces to an absolute position.

All nodes created have one of the three ordinates in the selected coordinate system changed to a specified value. The remaining two ordinates are not changed.

Only one extrusion is created between the source entity and the specified target position.

Nodes are extruded into beams or links, beams are extruded into plates, and plates and brick faces are extruded into bricks.

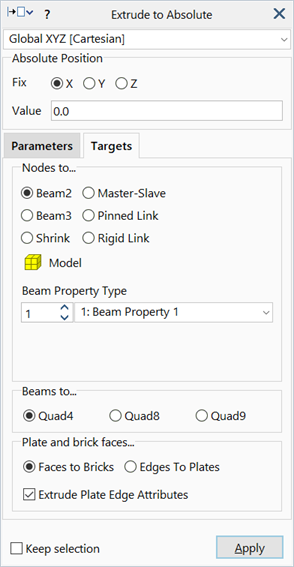

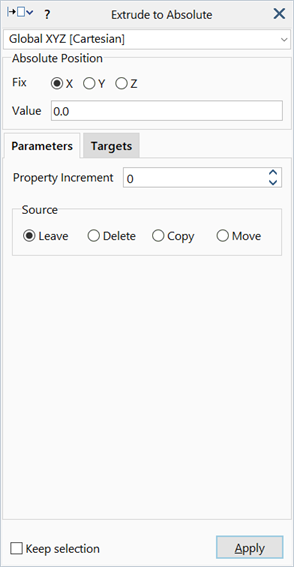

Dialog

Coordinate System

The coordinate system (UCS) in which the absolute position is defined.

Fix X / Y / Z

Ordinate to extrude to at the specified value. The remaining ordinates remain unchanged.

Value

Value of the selected fixed ordinate.
